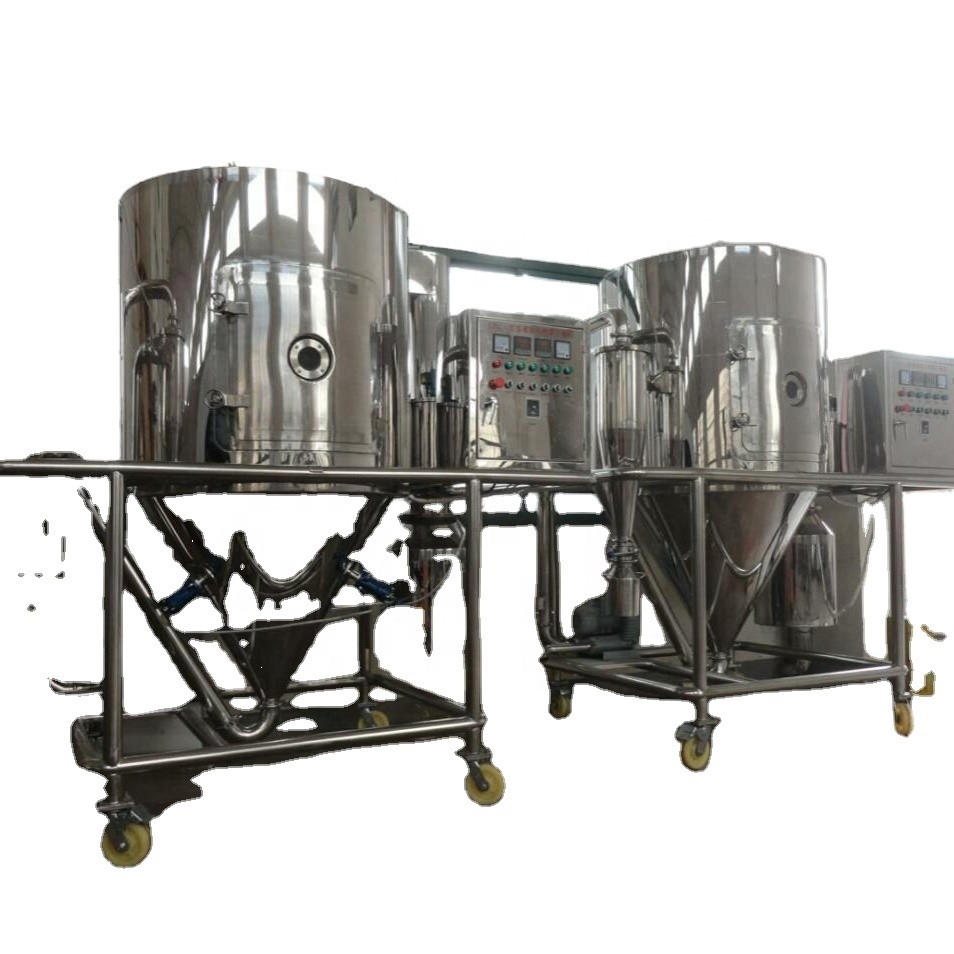

Milk Powder Spray Dryer Granulator

Place of Origin : China

Brand Name : OEM

Certification : CE;ISO

Supply Ability : 10 sets per month

Packaging Details : Standard export Carton

MOQ : 1 set

Price : Negotiable

Delivery Time : 20-30days

Payment Terms : L/C, T/T

Type : Spray Drying Equipment

Application : Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Foodstuff

Condition : New

Voltage : Customized

Power(W) : 85kw

Dimension(L*W*H) : Customized

Key Selling Points : Competitive Price

Warranty : 1 YEAR

After-sales Service Provided : Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service

Weight (KG) : 5000KG

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Applicable Industries : Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Food & Beverage Shops

Local Service Location : None

Showroom Location : None

Product name : Spray Granulator Drying Machine Drier Oven System Dehydrator

Name : Spray Drying Equipment

Heating source : Steam+electricity

Material : 304 Stainless Steel

Function : Food Vegetable Fruit Dehydrator

Usage : Reduce Material's Moisture

Installation : Engineer Guide

Heating : Steam Heating

Contact Now

Milk Powder Spray Dryer Granulator

DESCRIPTION:

The spray drying technology is the widest used in the liquid shaping technology and in the drying industry. It is most suitable for producing powder, particle, or block solid products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, the spray drying is one of the most desired technologies when the particle size and distribution of the final products, their residual water contents, and the stocking density and the particle shape can meet the precision standards.

WORKING PRINCIPLE:
The air enters into the air distributor which on the top of the drier after filtering and heating. The hot air in spiral form equably enters into the drying room. When liquid raw material is passing through the high-speed centrifugal sprayer on the top of the tower, it will be rotated and sprayed into the extremely fine mist liquid beads. Raw material can be dried to the final products instantly while it contact with the heated air. The finished products are discharged continuously from bottom of the drying tower and cyclones segregator. The waste gas is discharged from blower.

FEATURES:

The drying speed is rapid. When liquid raw material is atomized, the surface of the material will be enlarged greatly. 95% - 98% of water can be evaporated instantly in the hot airflow and the drying is only a few seconds. This dryer is especially suitable to dry the heat sensitive material.
The uniformity, flow capability & solubility of the dryer are very good. The finished products have high quality and high-purity.
Simple and stable operation, convenient control and debugging, easy to achieve automatic operation.
The production process is simple, The dryer can dry the liquid material which contains 40%-60%(90% for special materials) of moisture into powder at once. There's no need for smashing or sieving after drying so the operational environment is clean and in healthful condition, it also can avoid powder flying in the air during drying process.

APPLICATION:

Chemical Industry:

Sodium Fluoride (potassium), Basic Dyes & Pigments, Dyes Intermediates, Fertilizer, Formic Silicic Acid, Catalyst, Sulfuric Acid Agent, Amino Acid, White Carbon Black, and etc.

Plastic Resin:

AB, ABS Emulsion, Urea-formaldehyde Resins, Phenolic Resins, Urea Formaldehyde Resins, Polyethylene, Polyvinyl Chloride, and etc.

Food Industry:

Lipid-rich Milk, Armpit Protein, Cocoa Milk Powder, Substitute Milk, Hunting Blood Meal, Egg White (Yellow), Chicken Juice, Coffee, Instant Tea, Seasoning Meat, Protein, Soybean, Peanut Protein, Hydrolyzate, and etc.

Main Data:

Model/ Item/Specification	LPG-5	LPG-25	LPG-50	LPG-150	LPG-200-2000
Inlet Temperature	140-350 self control
Outlet temperature	80-90
Evaporation of water (kg/h)	5	25	50	150	200-2000
Centrifugal spray head type of power transfer	Compressed air drive	Mechanical transmission

Speed (r.p.m)	25000	18000	18000	15000	8000-15000
Spray disc diameter (mm)	50	120	120	150	180-240
heat source	electric	steam +electric	steam+electric+oil,gas, heat furnance
electric heating power (kw)	9	36	72	99
Dimension LxWxH (m)	1.8×0.93×2.2	3×2.7×4.26	3.5×3.5×4.8	5.5×4×7	according to real situation
Dry powder recovery (%)	≥95
