Dairy Products Fluid Bed 1500L Spray Dryer Granulator

Place of Origin : China

Brand Name : OEM

Supply Ability : 10 sets per month

MOQ : 1 set

Price : Negotiable

Certification : CE;ISO

Packaging Details : Standard export Carton

Delivery Time : 20-30days

Payment Terms : L/C, T/T

Type : Drying Machine

Condition : New

Application : Granules, Pharmaceutical industry

Weight (KG) : 4200 KG

Warranty : 1 YEAR

After-sales Service Provided : Video technical support, Online support

Key Selling Points : High Productivity

After Warranty Service : Video technical support, Online support

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops, pharmaceutical factory

Local Service Location : None

Showroom Location : None

Product name : bed granulator

Capacity : Hot Selling

Keywords : high efficiency fluidized

Usage : Making Granules

Fan power : 37kw

Dimension : 2290*5180*4420

Volume976L : 1500L

Variety : Yes

Contact Now

Dairy Products Fluid Bed 1500L Spray Dryer Granulator

Features

* The main machine adopts the most advanced design conceptof Company. lt improves material fluidity through powder granulating(mixing, granulating and drying).
* The operation is carried out in a closed negative system.
* The equipment is provided with the closed sampling function.The air intake control valve adopts proportional adjustment.The air intake heating system can adopt two heating modessuch as electric heating or steam heating.
* The machine is equipped with the advanced WIP cleaning.
* The machine meets the requirements for production in FDA/cGMP.
* The machine can be provided with 10Bar explosion-proofdesign according to user requirements.

Products Description

Model			FL-10	FL-20	FL-30	FL-60	FL-120	FL-200	FL-300	FL-500

Raw material vessel volume(L)			35	73	112	220	566	739	976	1500

Production capacity(kg/h)			15	20	30	60	120	200	300	500

Steam	Pressure(MPa)	0.4-0.6

		80Consumption(kg/h)	80	116	116	240	380	420	520	800

Compressed air	Pressure(MPa)	0.4-0.7

		Consumption(m³/min)	0.6	0.9				1.5

Fan power(kw)			5.5	7.5	7.5	15	18.5	30	37	55

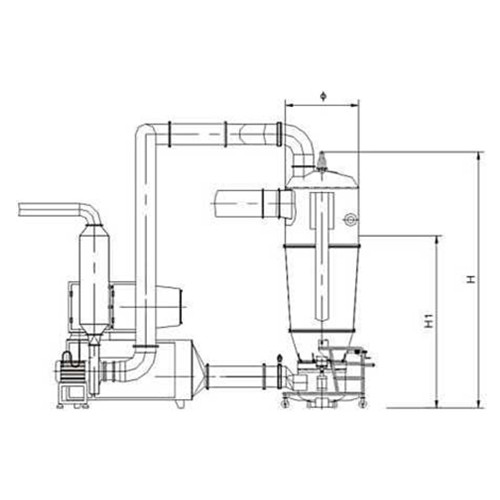

Outline dimensions(mm)	w	1200	1480	1480	1660	1890	2090	2290	2300
		H	3760	4000	4000	4420	4540	5100	5180	5600

		H1	3270	3600	3690	3690	4230	4315	4420	4800

Application

The machine is a process machine widely applied in such industries as drug, food, chemical industry, dairy products, etc. lt has such functions as mixing, granulating, drying, etc.
