Pharmaceutical ZLG Fluidized Bed Spray Granulation
Technical Parameters:
| Item Name | ZLG 6*0.75 Fluid Bed Drying Machine |
| Area of Fluidized-bed | 4.5 m2 |
| Temperature of Inlet Air | 70-140 ℃ |
| Temperature of Outlet | 40-70 ℃ |
| Capacity to Vapor Moisture | 120-170 kg / h |
| Motore Model | YZS 20-6 |
| Motore Power | 1.5*2 |
Description:
The Rectilinear Vibrating-Fluidizing Dryer is suitability in chemical, light industry, pharmaceutical, food, plastic, oil, slang, salt, sugar, and so on, for drying, cooling and wetting.
Features:
- The vibration created by motor is stable in operation and convenient in maintenance, low noise and long life.
- High thermal efficiency, compared with ordinary drier, the energy can be saved about 30%.
- It is good in regulation and wide in suitability.
- It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not affected even if raw materials have irregular shape.
- A fully enclosed structure, effectively the material and the air space between the cross infection of the working environment clean.
- You can string multi-set to raise capacity of raw materials, if the raw material contain high moisture such as polyacrylamide.
Principle:

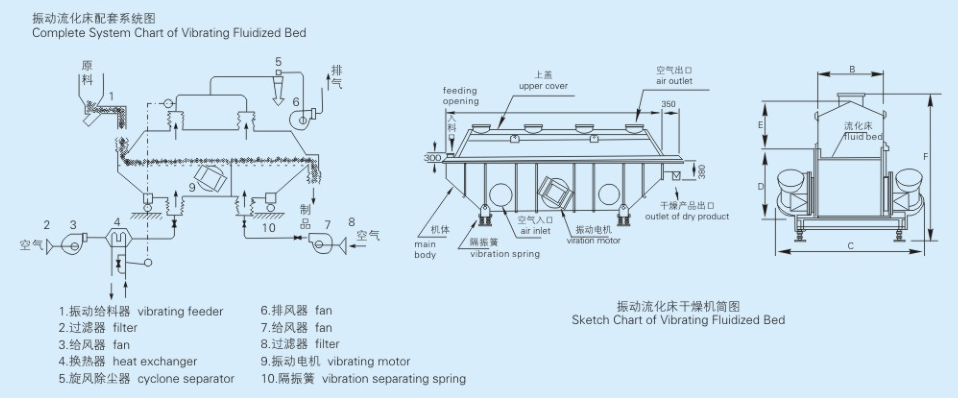

Raw material is fed into the machine and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and the dry raw material is discharged through discharge outlet.
