Centrifugal High Speed LPG Small Industrial Spray Dryer
Brief Introduction:
| Item Name | LPG-5 small-capacity liquid high-speed spray dryer drying machine batch production |
| Modle Type | LPG series centrifugal spray dryer |
| Common Size | The max size we supply before is LPG-7000. |
| Heating Source Supply | 1). electricity (this king of heating source supply is suitable for small capacity spray dryer, like LPG-5 and the sample testing spray dryer) 2). electricity+steam 3). electricity+steam/oil/gas Tip: It can been settled by customers yourselves. |

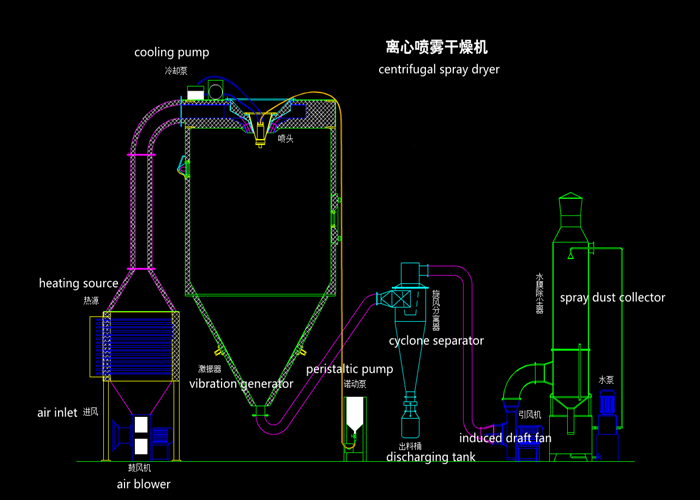

| Parts of Dryer Accessories | induced draft fan air blower electric control cabinet spray dust collector/air filter heater feeder discharging tank atomizer drying tower cyclone separator |
| Suitable Materials | liquid, emulsion, suspension, paste, glue liquid and so on. |
Working Principle of Centrifugal Spray Dryer:
The air is filtered and heated into the top air distributor in the top of the dryer. The hot air is spirally and uniformly into the drying chamber. The high speed centrifugal atomizer at the top of the tower is made into very fine mist droplets and can be dried in a very short time with the hot air. The finished product is continuously made of the bottom and spin of the drying tower. In the air separator, the exhaust gas is emptied by the fan.
Kinds of Spray Dryer:
1. centrifugal spray
2. pressure spray
3. Traditional Chinese medicine spray
4. Air spray
Selection Information:
1. Liquid name, physical property: solid content (or water content, viscosity, surface tension, PH value).
2. Dry powder capacity, allowable residual water content, particle size, maximum allowable temperature.
3. Output, shift time every day.
4. Available energy: steam pressure available, capacitance, available for coal, oil and gas.
5. Control requirements: enter and exit temperature need to be self-controlled.
6. Powder collecting requirement: whether to install bag trap, environmental emission requirements.
7. Other special requirements.
Pictures of Centrifugal Spray Dryer:
