Mini Egg Milk Powder Making Machine Atomizer Centrifugal Lab Spray Dryer

  • 1
  • 2

Brand Name : Guojin

Model Number : Lab Type

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 20-30days

Packaging Details : Standard export Carton

Item Name : Mini Egg Milk Powder Making Machine Atomizer Centrifugal Lab Spray Dryer

Model Type : Lab Type

Application : Chemicals Industry, Food Industry,Pharmaceutical Industry

Rated Power : 3kw

Material : AISI 304

Heater : Electricity

Water Evaporation : ~ 2500ml/h

Control System : PLC Control System

Feed Amount : 30ml ~ 2500ml / h can adjuste

Contact Now

Mini Egg Milk Powder Making Machine Atomizer Centrifugal Lab Spray Dryer



Laboratory table top spray dryer is the latest type, which adopts advanced international technology and spare parts. Our Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.





Products Features:

1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.

2. Imported Schneider electrical components which is more stability.

3. PLC control system, make your research more easier and efficient.

4. Build in oil-free air compressor, without any noise.

5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.

6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.

7. Innovative tower wall purging device, improves the material recycling rate.

8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.



Mini Egg Milk Powder Making Machine Atomizer Centrifugal Lab Spray Dryer


Technical Datas
Item



VOSHIN-2000P


Specifications Lab type spray dryer
Inlet air temperature control 30 ℃ ～ 300 ℃
Outlet temperature control 30 ℃ ～ 140 ℃
Evaporated water 1500mL / H ～～ 2500ml / h
Feed amount 30ml ~ 2500ml / h adjustable
Feeding method Peristaltic pump adjustment
Dry air flow 0 ～ 330m3 / h
Dry air full pressure 686Pa
Temperature control accuracy ± 1 ℃
Average drying time 1.0S ～ 1.5S



Display parameters

Air inlet temperature, air outlet temperature, peristaltic pump speed, fan flow rate, pass needle

Frequency.
Nozzle size 1.0mm can be customized



Structural features

Food-grade stainless steel machine and atomizer + spray, drying, and collection bottles are made of high-borosilicate

heat-resistant glass
rated power 3KW
Power supply AC220V / 50Hz
Dimensions(HxLxW) 1200mm × 650mm × 500mm
The standard configuration 1 host + 1 glass container pipe + 1 built-in air compressor
Weight 65kgs



Capacity

Feed capacity: 30ml-2500ml/h, finish capacity: about 1kg/h

water evaporation: 1500ml-2500ml/h
Material AISI 304
Fan With VFD
Control System PLC
Others

Small air pump, industrial switch,

a data line

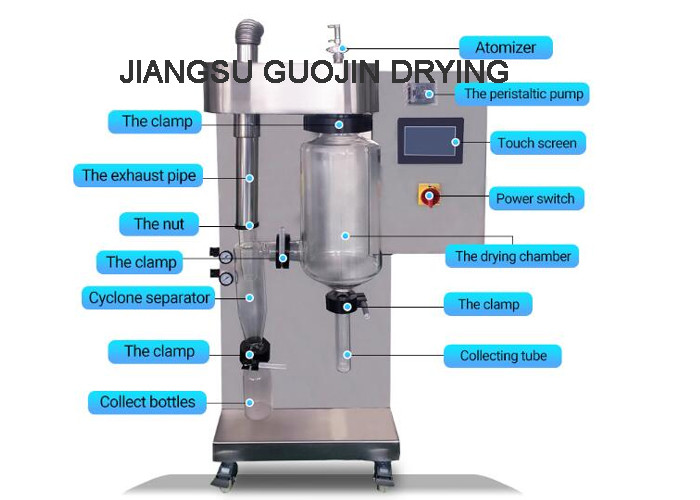

Bench Type Lab Spray Dryer Pictures
